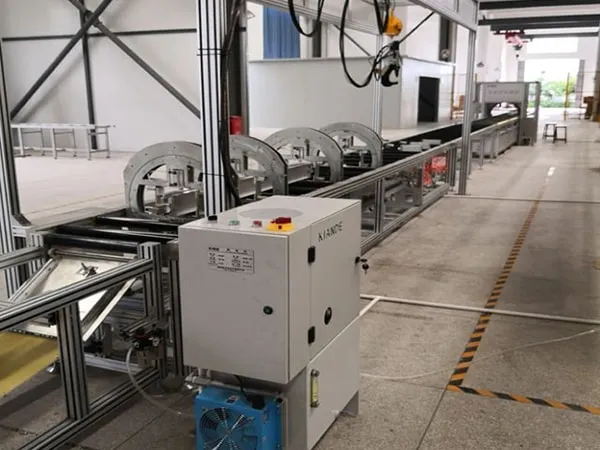

Self-Piercing Riveting Machine

Used to join busduct housing sections by self-piercing riveting

Watch Video

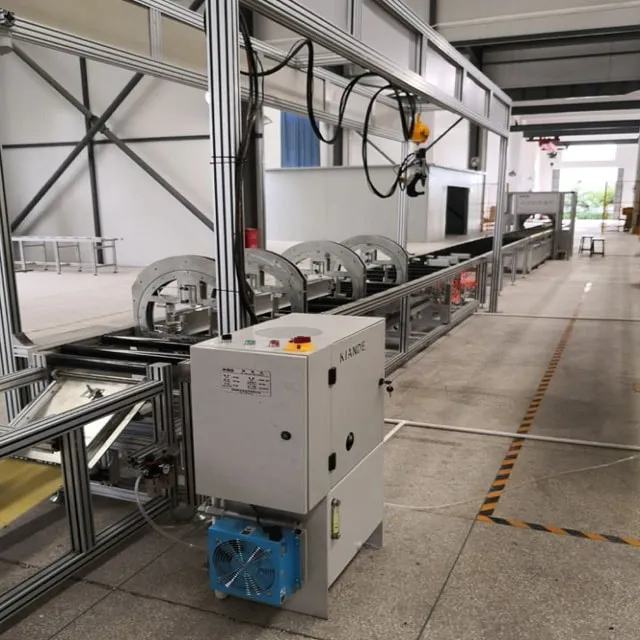

Self-piercing riveting machines are used during busduct assembly. They can be customized according to the housing material used in production, so the riveting setup can match different busduct housing requirements.

Before riveting, the busduct housing does not need to be pre-drilled. The riveting force generated by the equipment, together with the rivet structure, allows piercing riveting to be carried out directly during assembly. The housing sections can therefore be joined directly during riveting, without any pre-drilled holes.

Riveting Process

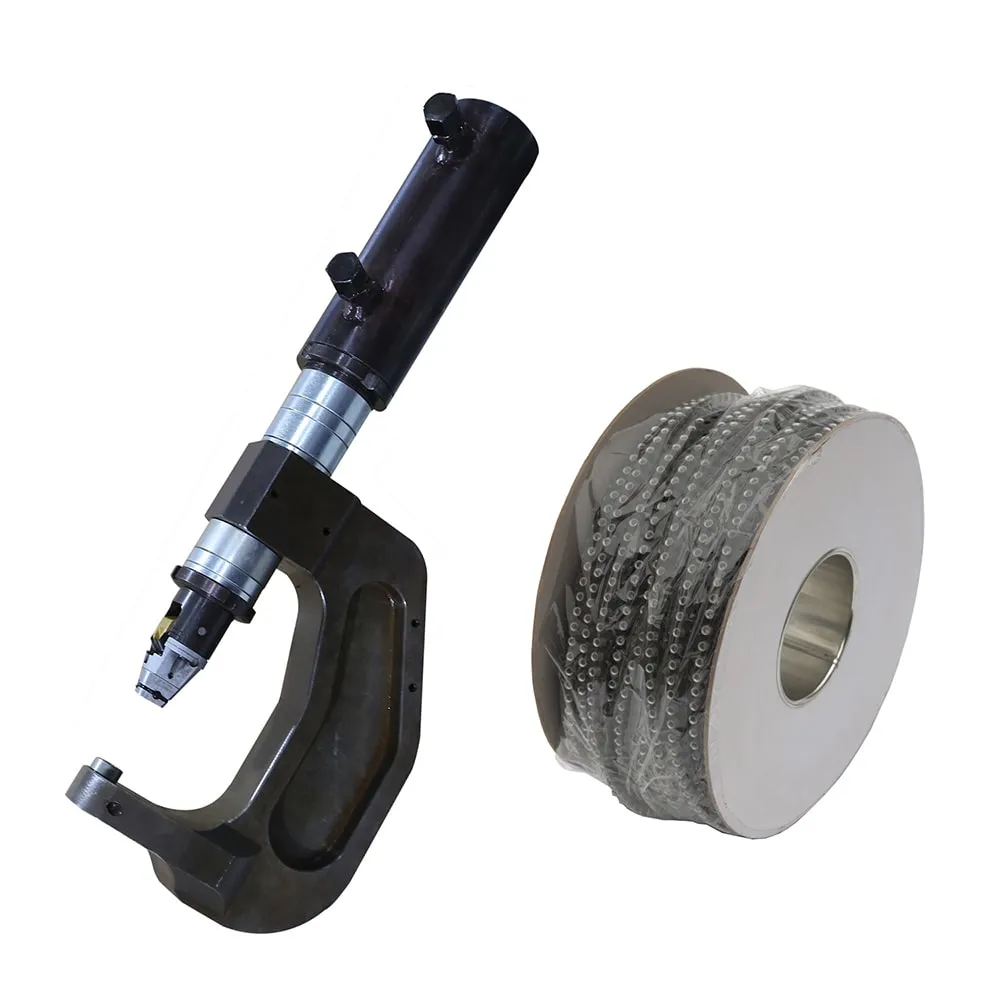

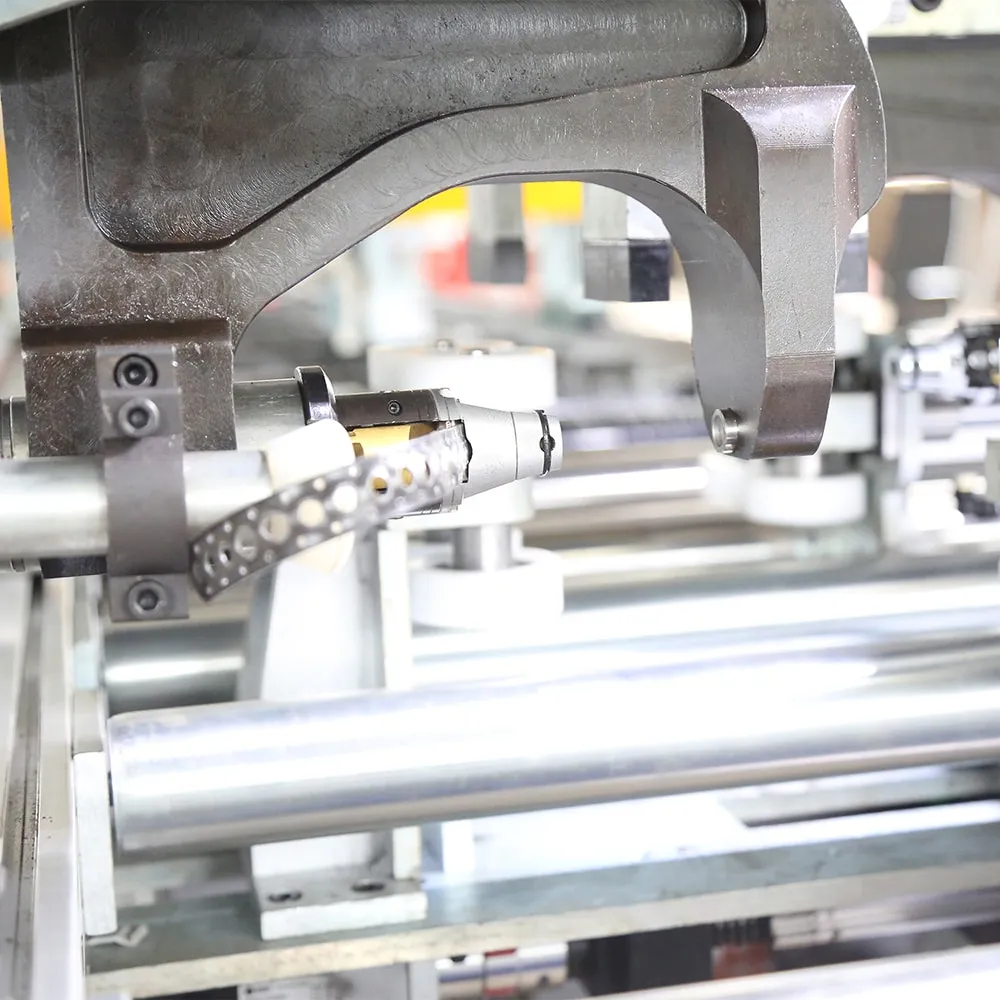

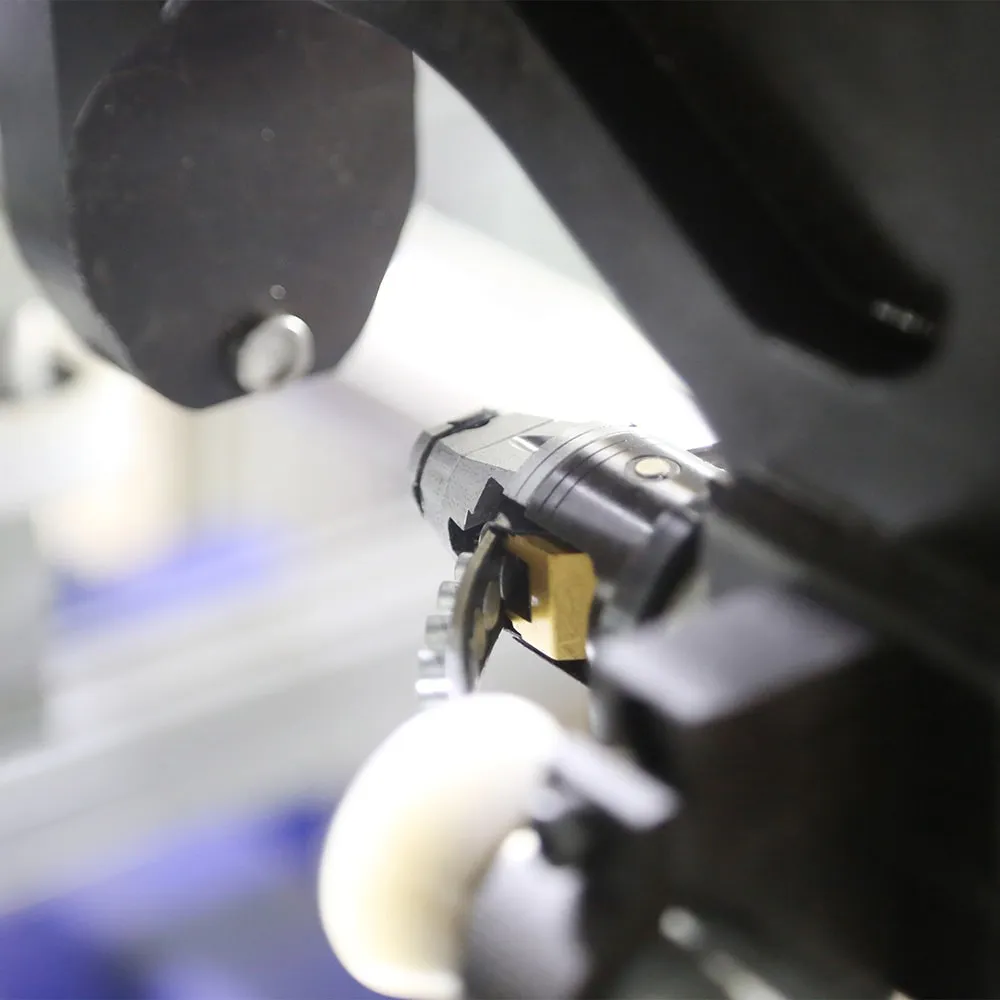

Rivet positioning

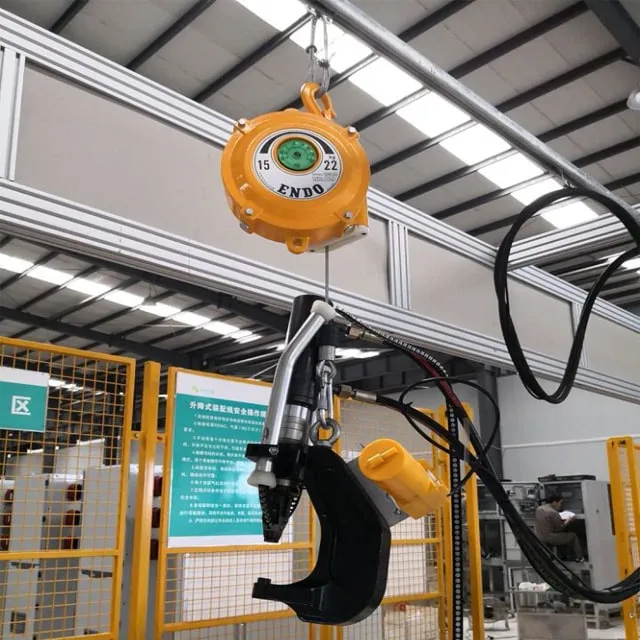

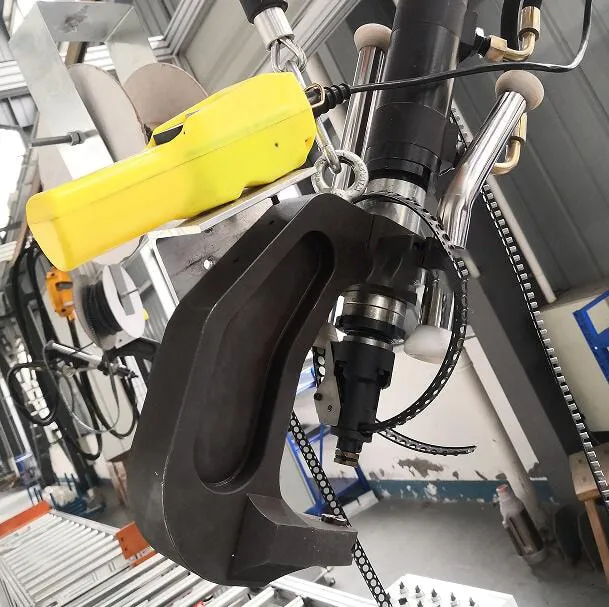

Pressure applied by the riveting tool

Piercing through the housing sections

Rivet deformation

Locking of the joined sections

Finished riveted joint

Specifications

Model	KD-MJQ-2
Max. Pressure	25MPa
Oil Pipe Length	10000mm

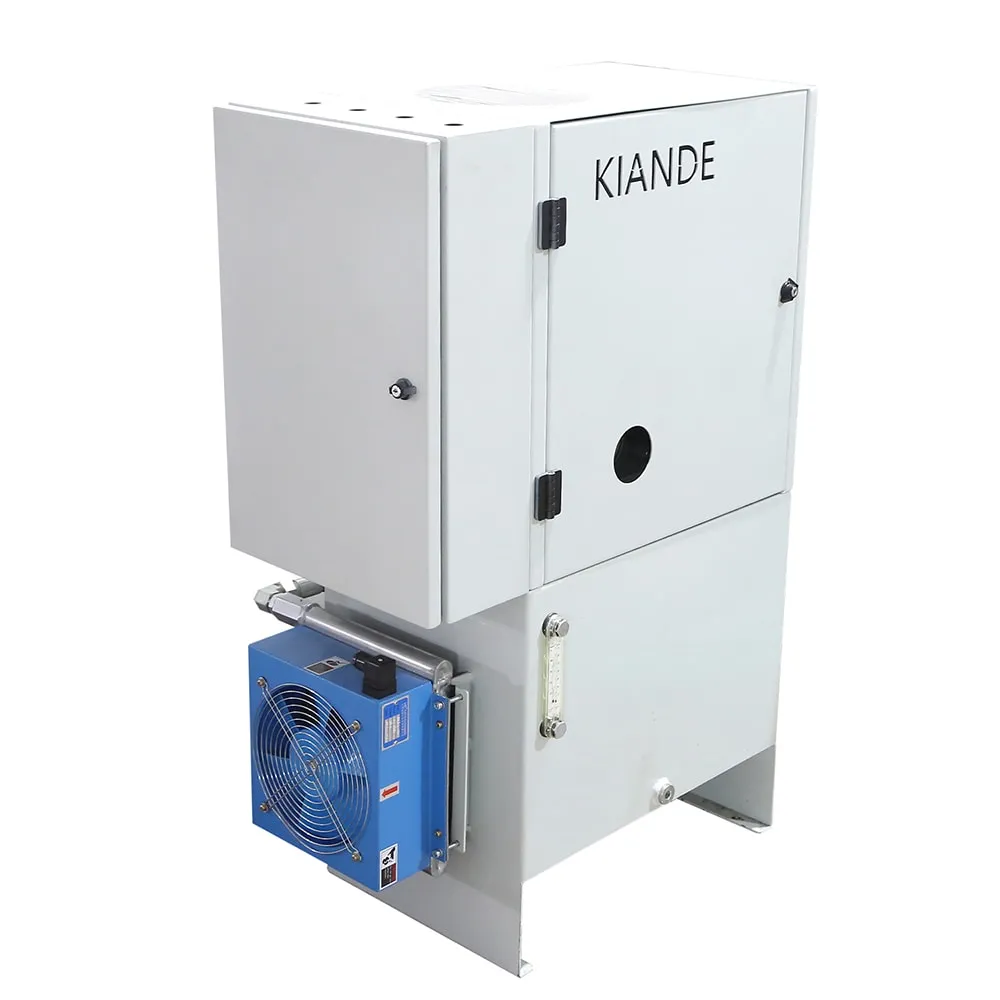

Oil Tank Capacity	50L
Stroke of Riveting Head	50mm
Aluminum Thickness	3mm+3mm
Steel Thickness	1.5mm+1.5mm
Power Supply	380–415VAC, 50–60Hz, 4.5kW
