Manual Busbar Assembly Line

For pre-assembly, clamping, manual riveting, turning, and accessory installation

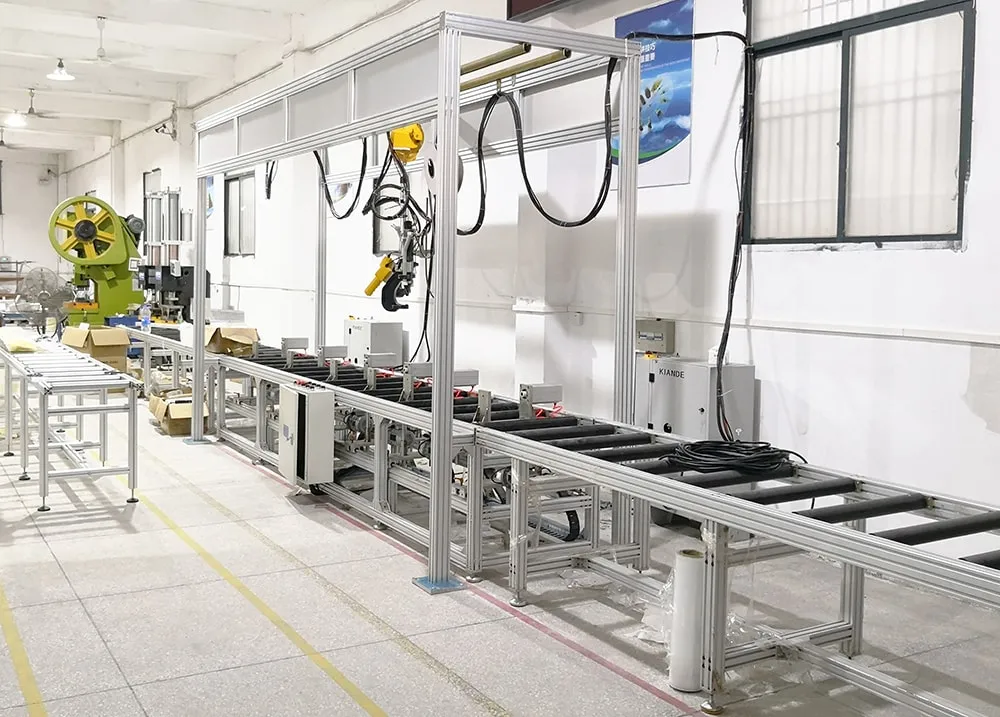

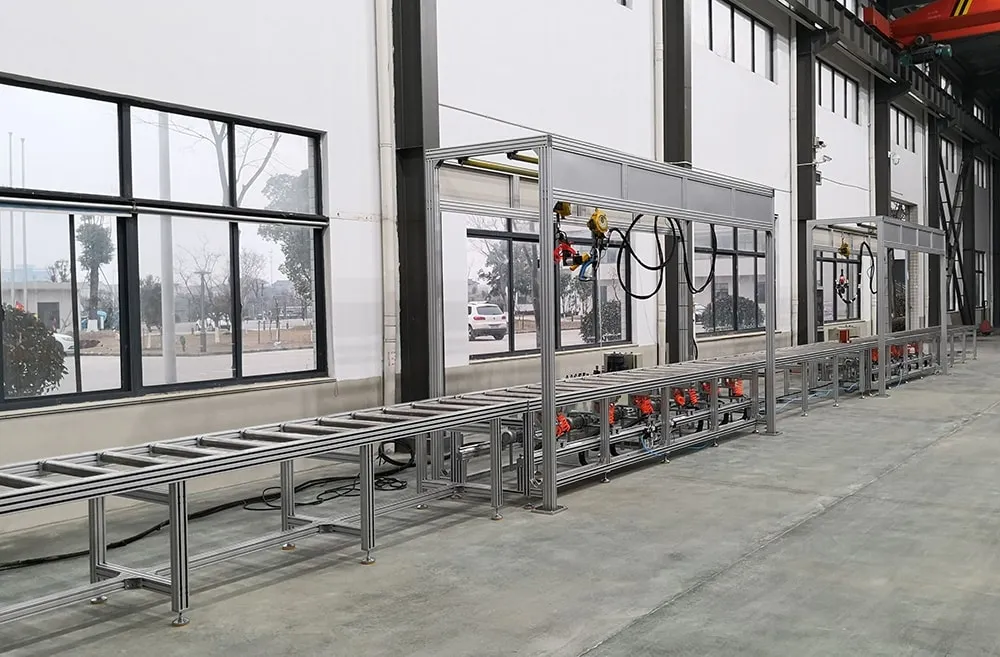

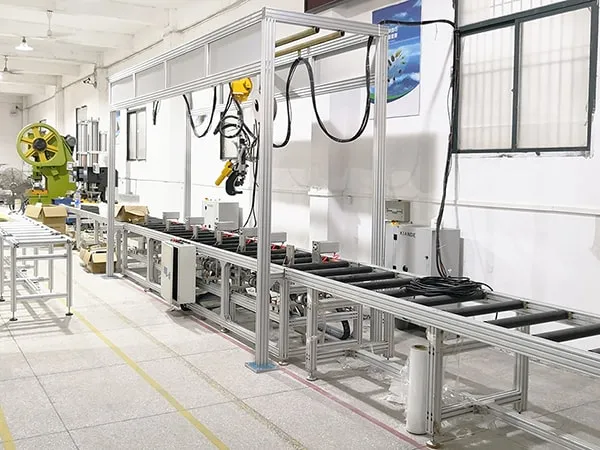

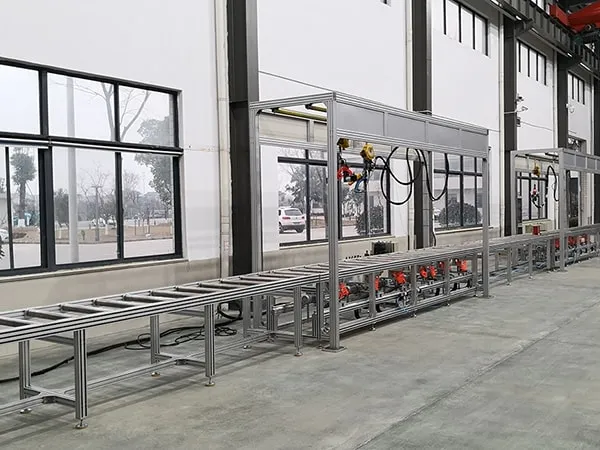

Manual busbar assembly lines are built for assembly work that is carried out step by step by the operator. A manual busbar assembly line usually includes three main stations: pre-assembly, riveting, and accessory installation. Since busbar systems are not all built in the same way, the assembly line can be set up for either two-piece or four-piece busbar structures.

During assembly, the busbar is held in place so the operator can carry out fixing and riveting more easily. Turning and riveting are done manually, which gives the operator direct control over each step. Once the main assembly work is finished, busbar accessories are installed at the final station.

Assembly Workflow

Pre-assembly

Busbar positioning and clamping

Manual riveting

Manual turning

Accessory installation

Specifications

Model	KD-SDX/2(4)-6(4.5)
Max. Busduct Height	330mm (single layer)
Max. Busduct Length	6000mm
Working Efficiency	Approx. 3000mm per 6min
Lifting Fixture	6 pieces/8 pieces
Main Frame Material	Aluminum alloy/steel (optional)
Hanger Material	Aluminum hanger
Riveting Type	Manual riveting
Power Supply	380–415VAC, 50–60Hz, 1kW
Dimensions (L×W×H)	18000(13500)×800×800mm
