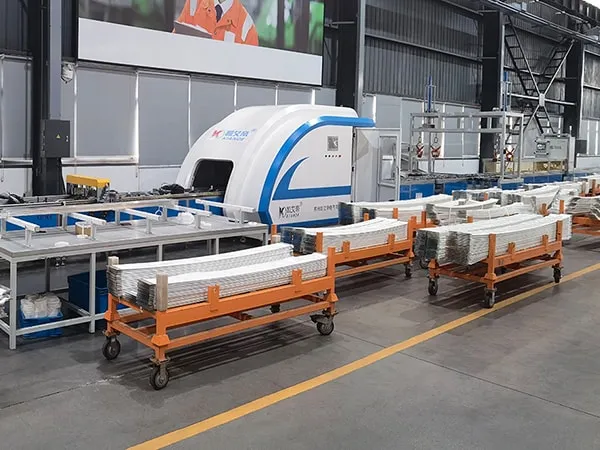

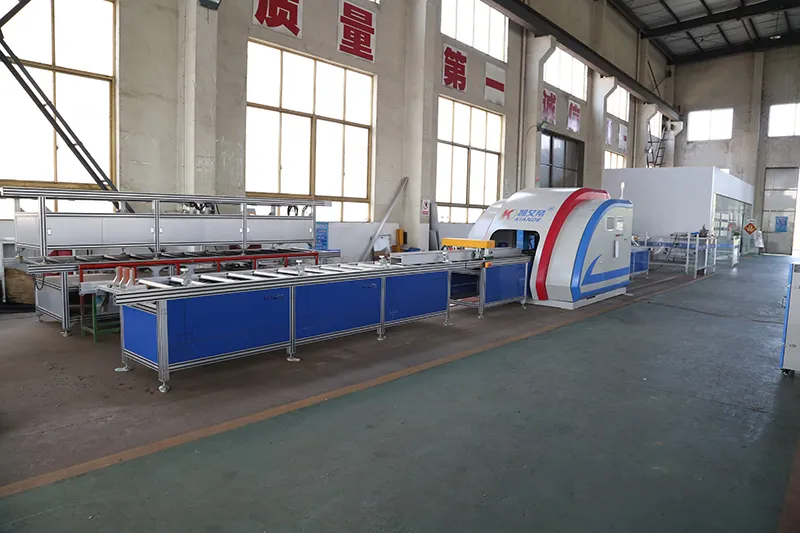

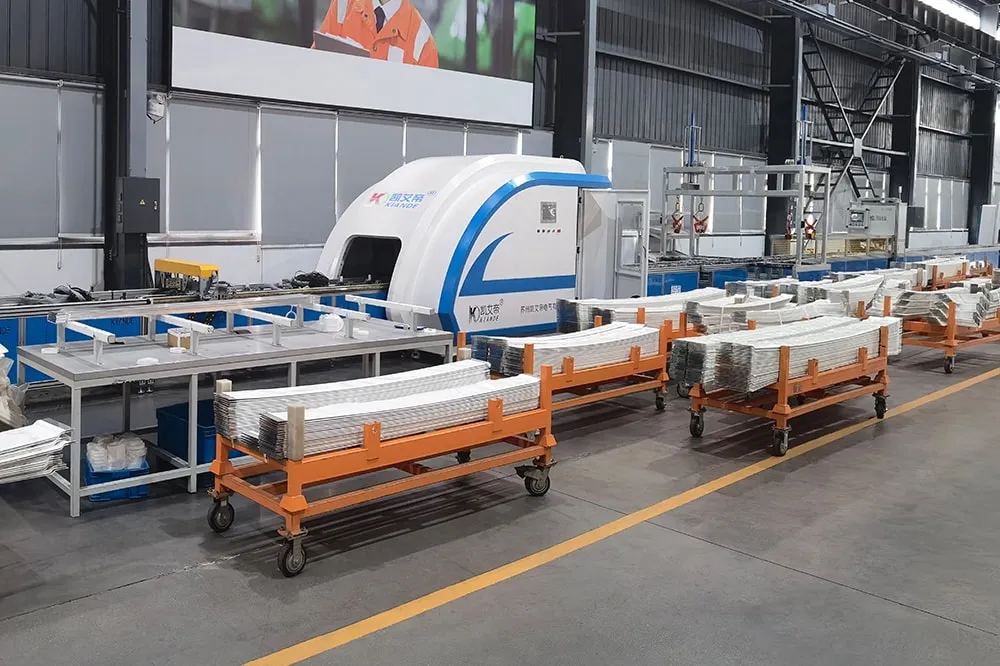

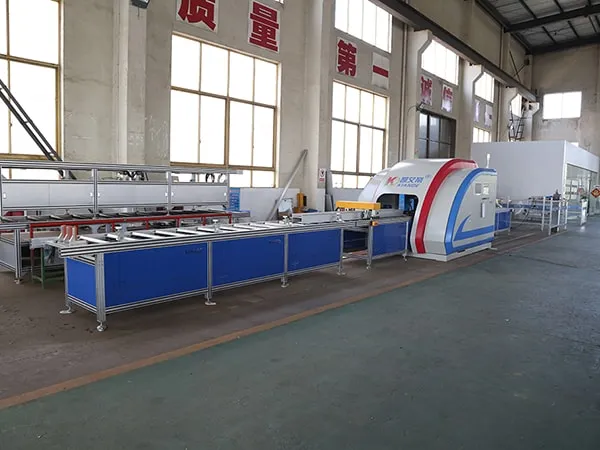

Automatic Busbar Assembly Line
KIANDE automatic busbar assembly line features automatic positioning, automatic conveyance, and automatic riveting, ensuring that every product is assembled to consistent standards. It eliminates human error and material waste. Both compact and air busbar configurations are supported. 2 or 4-station configuration adapts to your specific requirements.
Contact KIANDE for a factory layout and ROI analysis. We will design the most efficient Automatic Busbar Assembly Line for your project.

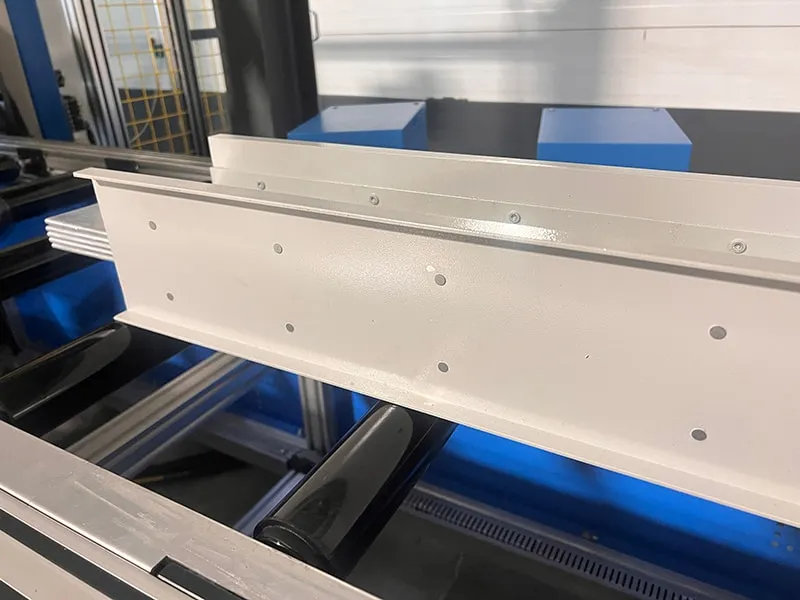

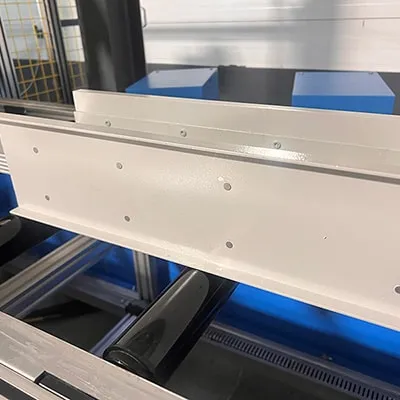

Two-Piece Busduct Housing Structure
Four-Piece Busduct Housing Structure
Compatible with Rivet & Bolt – One machine, both fixing methods

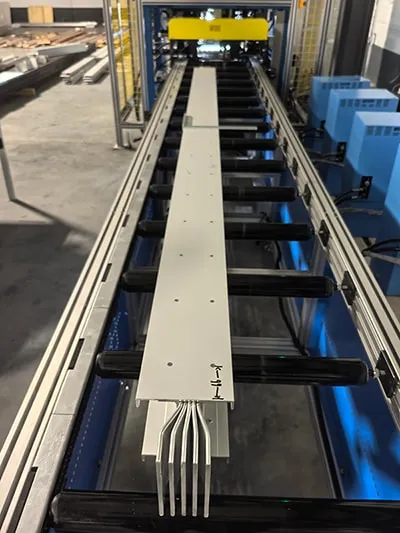

Automated positioning & fastening, minimizing manual intervention
Connection with CNC punching/shearing/bending and testing
Less downtime, faster assembly
| Model | |
| Max. Busduct Height | 350mm (single layer) |
| Max. Busduct Length | 6000mm |
| Positioning Mode | Unilateral positioning or center positioning |
| Working Efficiency | Approx. 3000mm per 2min |
| Control Axis | 5 Axis |
| Control System | Network control, online maintenance (optional) |
| Number of Riveting Station | 4 sets (four-piece housing) / 2 sets (two-piece housing) |
| Riveting Type | Automatic riveting |
| Power Supply | 380–415VAC, 50–60Hz, 20kW |
| Dimensions (L×W×H) | 25000×2000×1900mm |

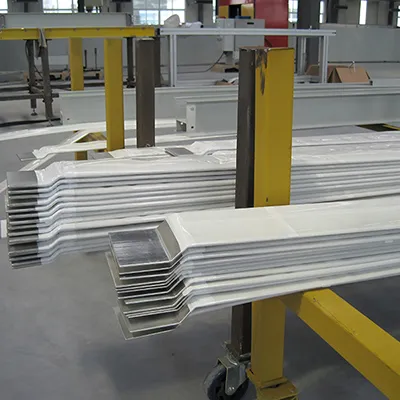

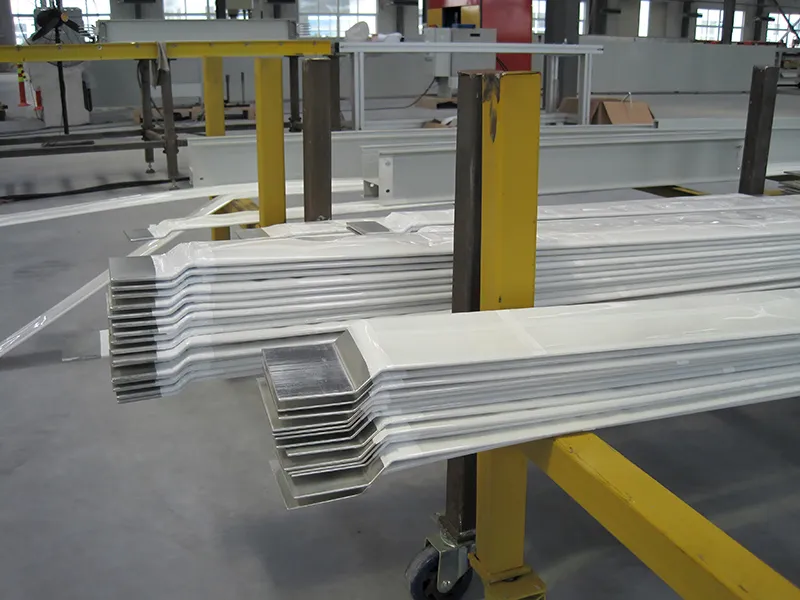

Automatic busbar assembly and fastening, including riveting and stud fixing for busbar system production.
- Smart Factory Production: Final automated assembly of high-current busway systems for industrial 4.0 plants.
- High-Rise Power Risers: Rapid assembly of standard 3-meter or 6-meter busway sections for vertical power distribution in skyscrapers.
- Infrastructure Projects: Mass production of reliable busbar trunking for airports, hospitals, and large stadiums.
- OEM/ODM Manufacturing: Highly consistent busbar assembly line for international brands requiring strict adherence to global safety standards.
