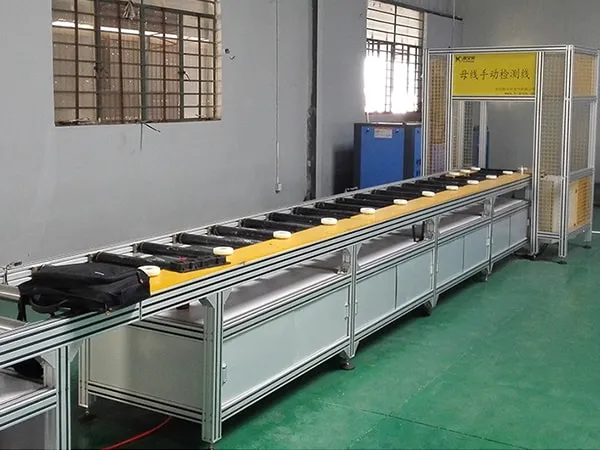

Manual Busduct Inspection Machine

Suitable for Manual Hi-Pot and Insulation Testing of Special Busducts

Manual busduct inspection machines are mainly used for hi-pot and insulation testing on short busducts, irregular elbows, starting sections, and other special-shaped busducts. They are suitable for busducts with special shapes that are not as easily handled on fully automatic inspection equipment.

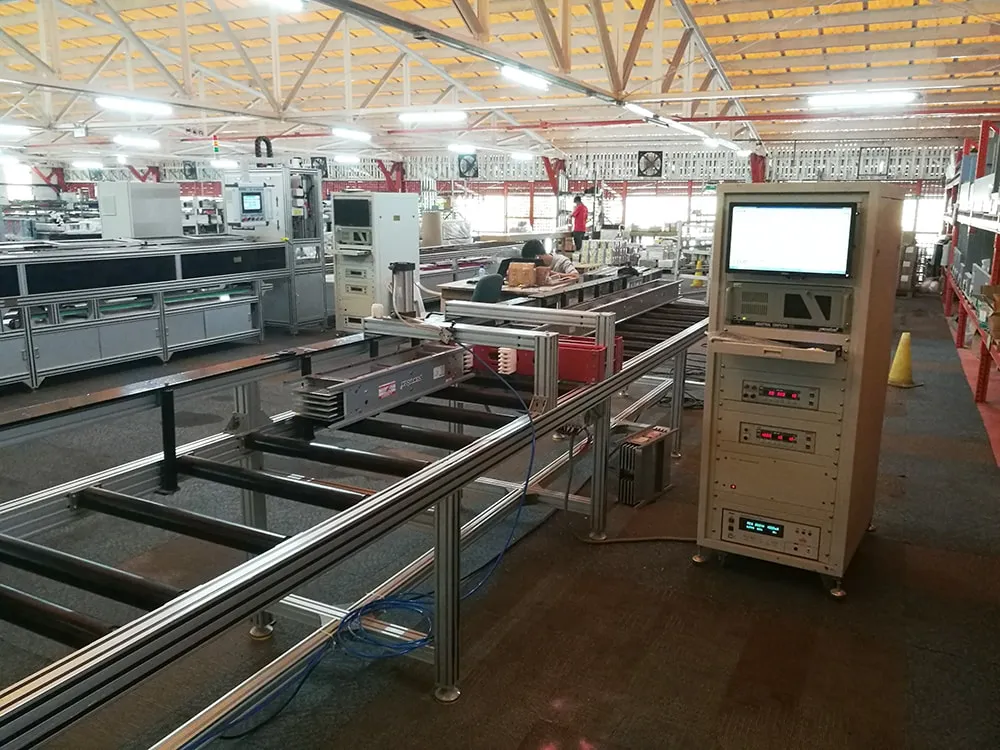

Each inspection machine includes two main parts: one part is used for manual positioning with tooling, while the other is the main testing instrument. After the busduct is placed in position, the testing instrument carries out the hi-pot and insulation tests automatically and generates the corresponding inspection report.

Specifications

Model	KD-JCX/M-6
Busduct Height	100–650mm
Busduct Length	500–3000mm
Applicable Busduct Type	Irregular/special-shaped busduct
Positioning Mode	Unilateral positioning
Printing System	Barcode printing/report printing (optional)
Hi-pot Test (Voltage Withstand Test)	0–5000V
Insulation Test	1–1000V
Grounding Test	0–25A
Power Supply	380–415VAC, 50–60Hz, 3kW
Dimensions (L×W×H)	L6200×800×800mm

Our integrated busbar processing machines have been successfully exported to major markets worldwide, including the United States, Russia, Ireland, the UAE, Saudi Arabia, India, Malaysia, and the Philippines.

With stable performance and superior quality, our CNC busbar fabrication systems have empowered numerous customers to achieve outstanding operational efficiency in their respective industries. To date, our busbar machines have maintained 100% positive customer feedback.

This global track record not only reflects the reliability of our automated busbar processing machines, but also demonstrates our unwavering commitment to customer satisfaction as our core guiding principle.
