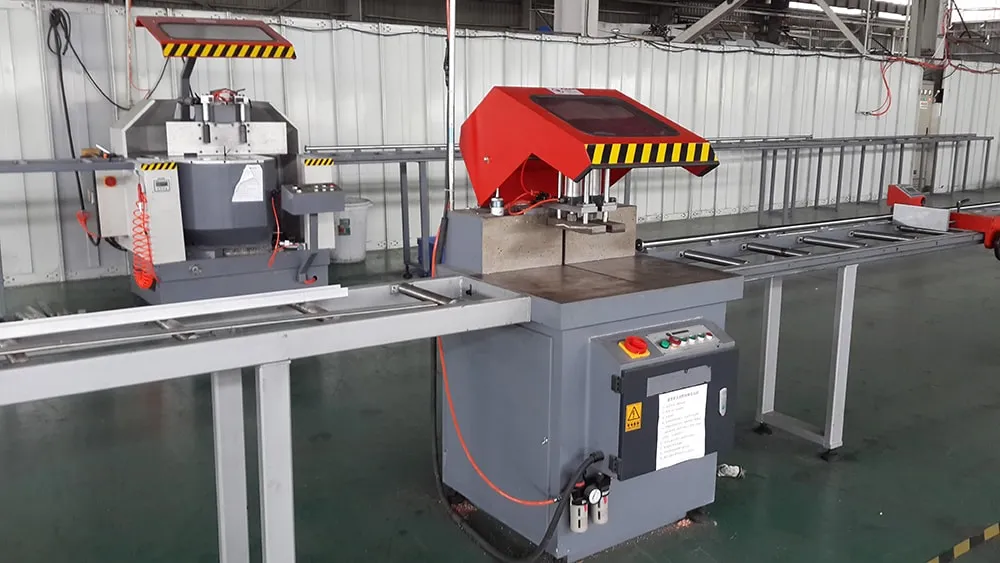

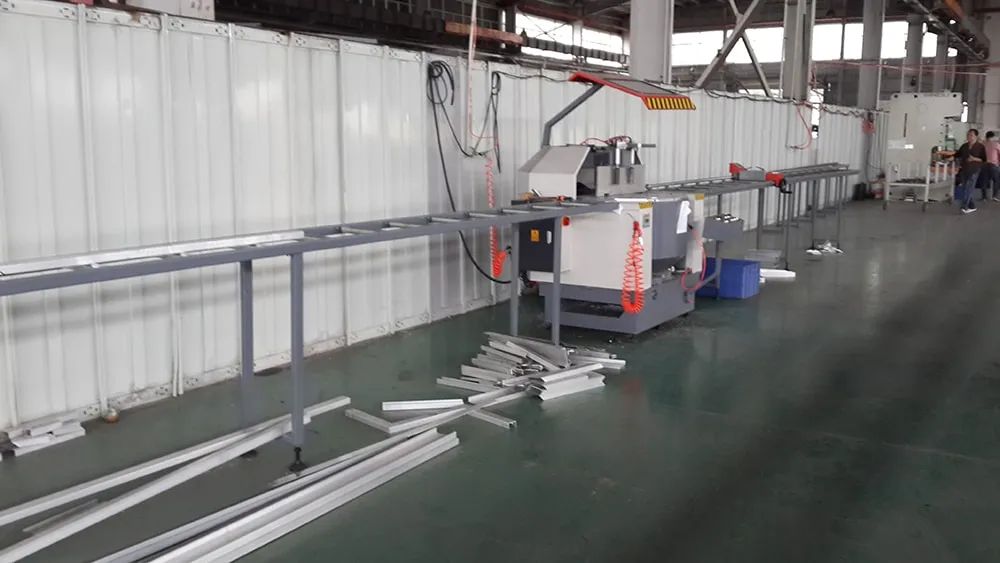

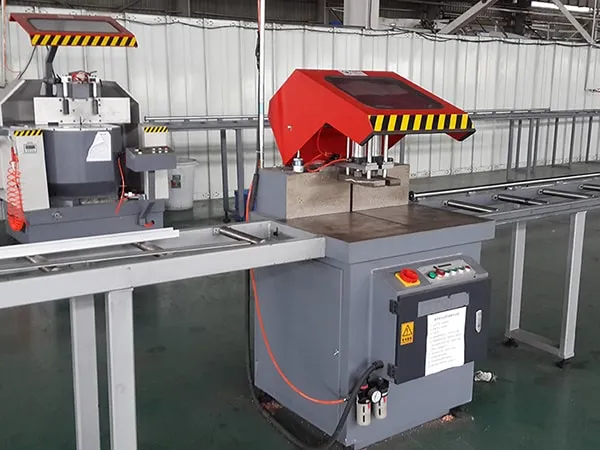

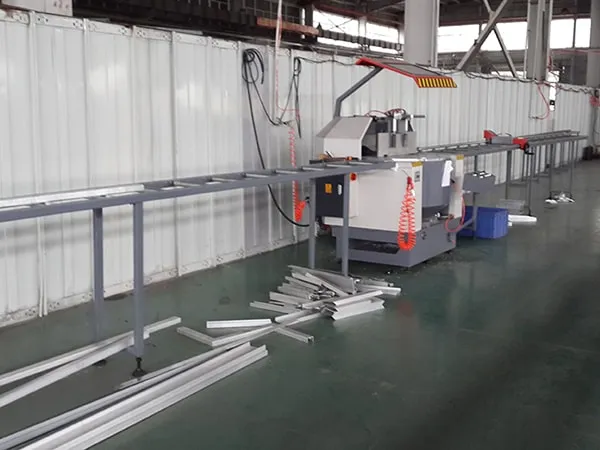

Busduct Profile Sawing Machine

Cutting aluminum alloy and plastic profiles for busduct housing production

Busduct profile cutting machines are mainly used for cutting aluminum alloy profiles in busduct production. They can also be used for cutting plastic profiles, making them suitable for different profile materials used in related manufacturing work.

Cutting is performed with a carbide saw blade, which allows aluminum alloy or plastic profiles to be cut at a higher speed with good accuracy. During operation, the saw blade angle can be adjusted from 90° to 45° according to the cutting requirement, allowing the profile to be cut at different angles.

Specifications

Model	KD-DTJ/328B
Saw Cutting Length	80–2080mm/3080mm
Saw Cutting Size (W×H)	230×150mm/280×100mm
Main Motor Power	3.0kW
Main Motor Speed	2850r/min
Saw Blade Size	Ø500×Ø30×120T
Saw Blade Swing Angle	90° to 45°
Saw Feed Speed	0–3m/min
Saw Return Speed	2–3m/min
Power Supply	380–415VAC, 50–60Hz, 20kW
Air Supply	0.6–0.8Mpa
Dimensions (L×W×H)	1000×1300×1360mm

Our integrated busbar processing machines have been successfully exported to major markets worldwide, including the United States, Russia, Ireland, the UAE, Saudi Arabia, India, Malaysia, and the Philippines.

With stable performance and superior quality, our CNC busbar fabrication systems have empowered numerous customers to achieve outstanding operational efficiency in their respective industries. To date, our busbar machines have maintained 100% positive customer feedback.

This global track record not only reflects the reliability of our automated busbar processing machines, but also demonstrates our unwavering commitment to customer satisfaction as our core guiding principle.
